The main beam of 3 axle flatbed trailer for sale is equipped with Q345 low carbon high strength alloy steel, which is more stable than ordinary steel in Cameroon Tiko. Flatbed trailer 3 axle has good bearing capacity, it can use more than 5 years in Tiko.
Flatbed trailer 3 axle can transport not only containers, but also bulk cargo. Flatbed trailer 3 axle is really popular in Cameroon Tiko. Customers in Cameroon can purchase 3 axle flatbed trailer for only 10500 USD, it is very worthwhile. Tiko company adopts a 3mm diamond floor plate to make the flatbed trailer 3 axle, which has good bearing capacity and anti-slip capacity that can use more than 5 years.
3 Axle flatbed trailer for sale gooseneck lower has a reinforcement, gooseneck double plat. Flatbed trailer 3 axle in the heavy load when the deformation range is very small, better to use.

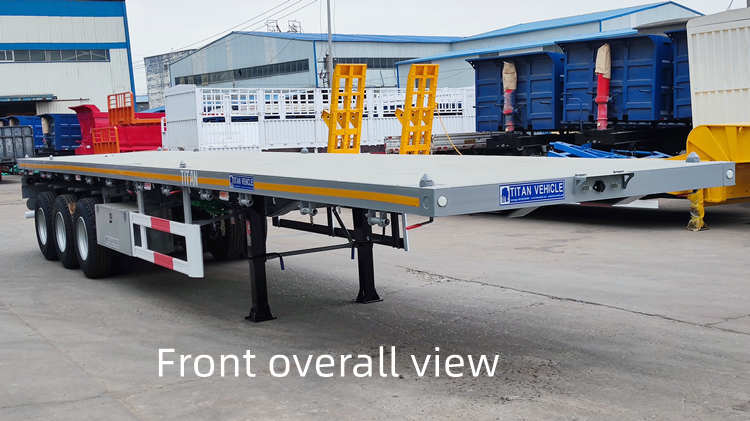

3 Axle Flatbed Trailer for Sale in Cameroon Tiko-Front overall view

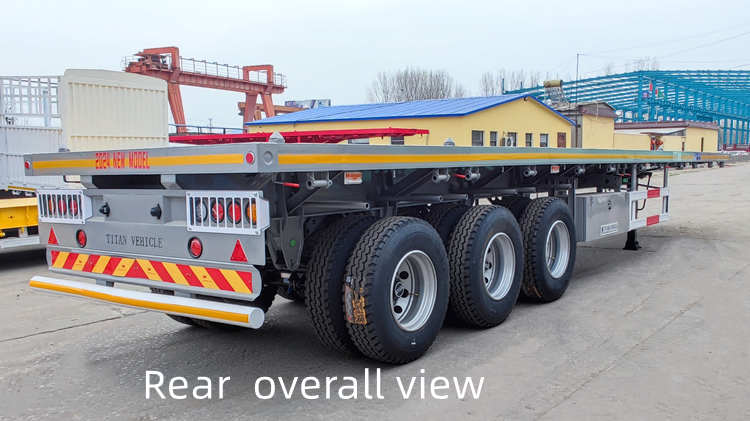

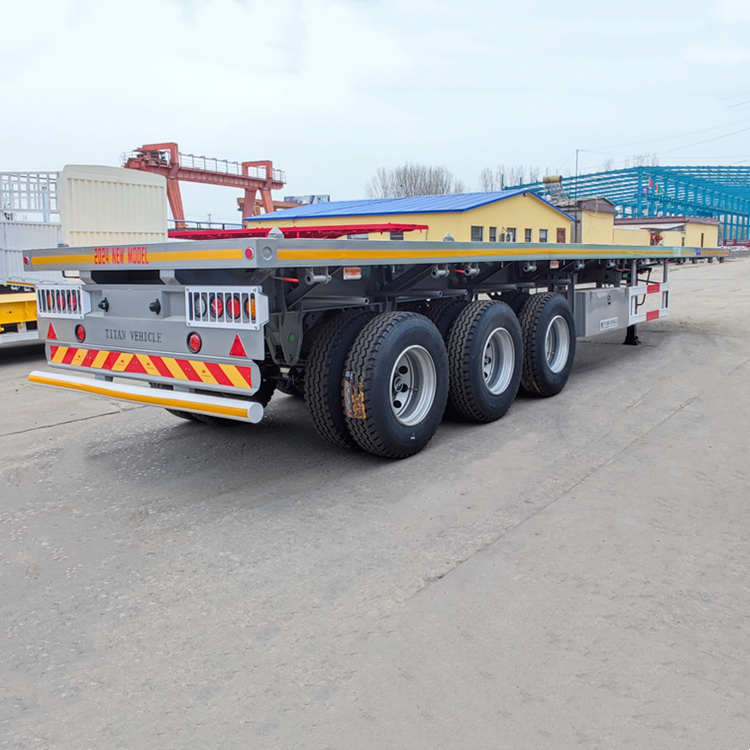

3 Axle Flatbed Trailer for Sale in Cameroon Tiko-Rear overall view

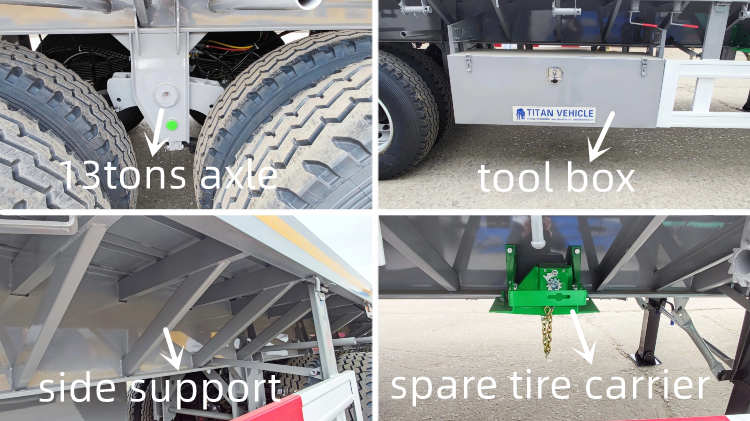

3 Axle Flatbed Trailer for Sale in Cameroon Tiko-Detail

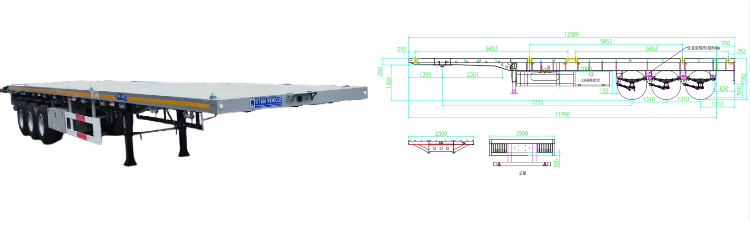

Dimension (L*W*H): 12500*2500*1550mm
Material: High strength low alloy Q345 steel
Main beam height: 500 mm
Thickness of main beam: upper: 14mm, lower: 16 mm, middle: 8mm
Floor: 3 mm checkered plate
Side beam: 16# channel steel
Cross beam: 10# channel steel
Axle: 3*13 tons TITAN axles
Tire: 12R22.5 Tire,12 pcs
Rim:900*22.5, 12 pcs
Suspension: Mechanical spring suspension, 10 pieces
King Pin: 2" (50#) or 3.5"(90#) high tensile steel bolted type
Landing Leg:28T landing leg
Container Lock:12 pcs
Accessories:1 waterproof tool box with stainless lock, 2 spare tire carrier
Painting: powder bake painting, anti-rust chassis surface with 1 layer of anti-corrosive primer and 2 layers of top coats
Color: Any color will be available, for example red、blue or yellow.
Packing detail: Container ships
3 Axle Flatbed Trailer for Sale in Cameroon Tiko
1>Flatbed trailer 3 axle use Q345 low carbon strength steel to make the main beam with high bearing capacity, anti turbulence capacity and long service life.
2>The main beam of flatbed trailer 3 axle is composed of three parts, the upper wing plate, the lower wing plate and the neutral plate. The upper wing plate adopts a thickness of 14mm and a width of 140mm. The lower wing plate adopts thickness of 16mm and a width of 140mm. The neutral plate adopts a height of 500mm and a width of 8mm.
3>3 Axle flatbed trailer for sale adopts polyurethane paint with high adhesion, high chromogenic, beautiful color, and the cost is twice that of ordinary paint. The paint will not come off after five years.
4>3 Axle flatbed trailer for sale also uses a steel spring in suspension system, displaying a small deformation amplitude after loading the heavy equipment, and the suspension of 40 feet flatbed trailer is reinforced from the front and rear, left and right. The landing gear of 40 feet flatbed trailer adopts triangular reinforcement to prevent the tilt.
5>The thickness of the side beam3 axle flatbed trailer for sale is 160mm, 100mm channel for the cross beam, and all of the through beams are supported by the Inclined support frame, and the distance of these frames is no more than 500mm, which can ensure the trailer not easy to deform.
6>3 Axle flatbed trailer tire has been working with the company in Cameroon for over 12 years.
7>Flatbed trailer 3 axle is equipped with LED lights and will be shipped with a set of taillights and side lights. LED lights with good capacity and service life.
8>Flatbed trailer 3 axle is equipped with tool box. The tool box is really thicker with carbon steel.
The 3 axle flatbed trailer for sale in Cameroon has the advantages of large capacity, high load-bearing capacity and efficient unloading system and has attracted many consumers to Tiko to visit factories and make purchases. 3 Axle flatbed trailer for sale has successfully entered into over 50 countries around the world.

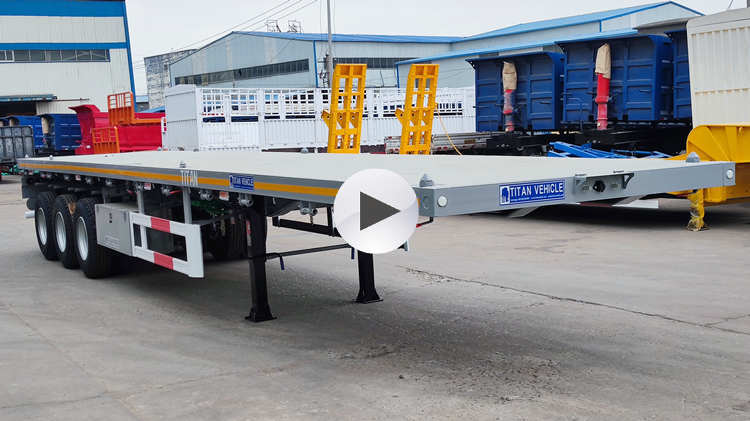

Customers from Cameroon can learn more about the 3 axle flatbed trailer for sale details in the video below. A client came to the Tiko company and visited the 3 axle flatbed trailer with staff.
