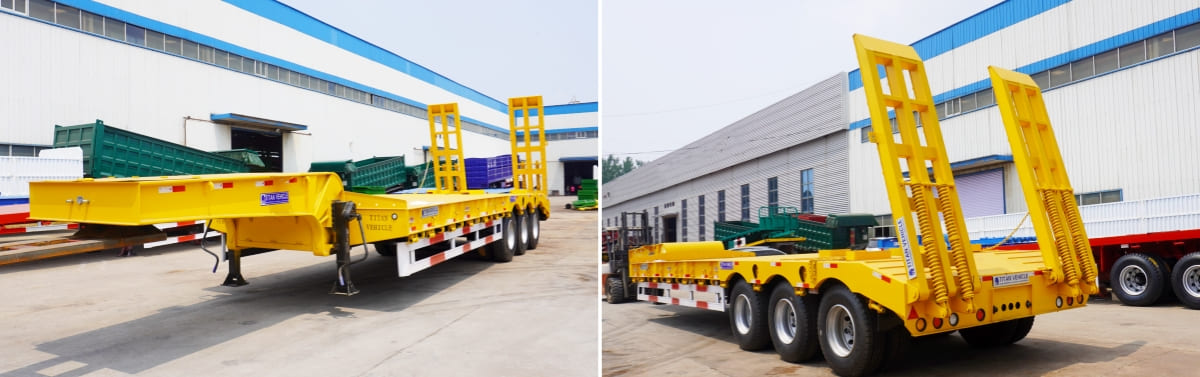

Low bed trailer truck is in stock at the factory, produced in May 2023, low bed truck price for sale has a $500 off for our customers.
As a professional manufacturer, we have provided many lowbed truck for sale for many countries. We have many more advantages on the low bed trailer truck and quality control. Material and suspension (single point and air suspension) are optional. Low bed truck price have different capacities.

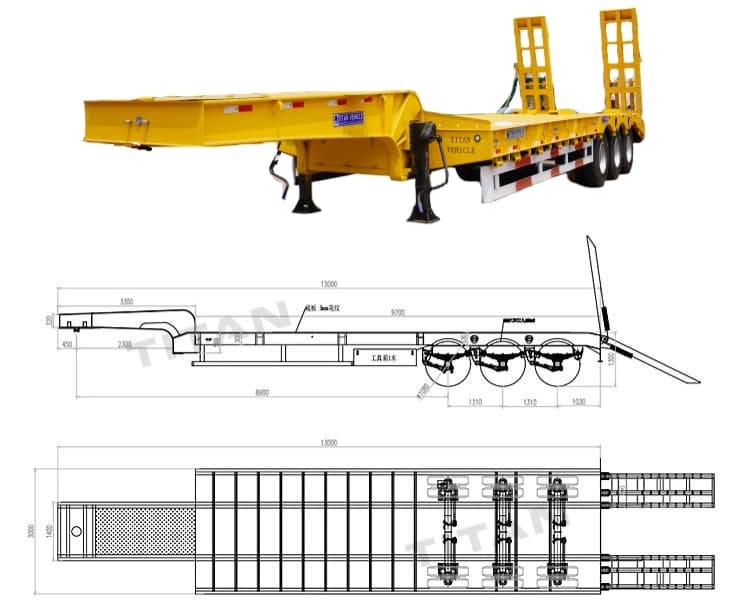

Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 60 tons
Axle: 3 axle low bed trailer, 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 12units, 11.00R20

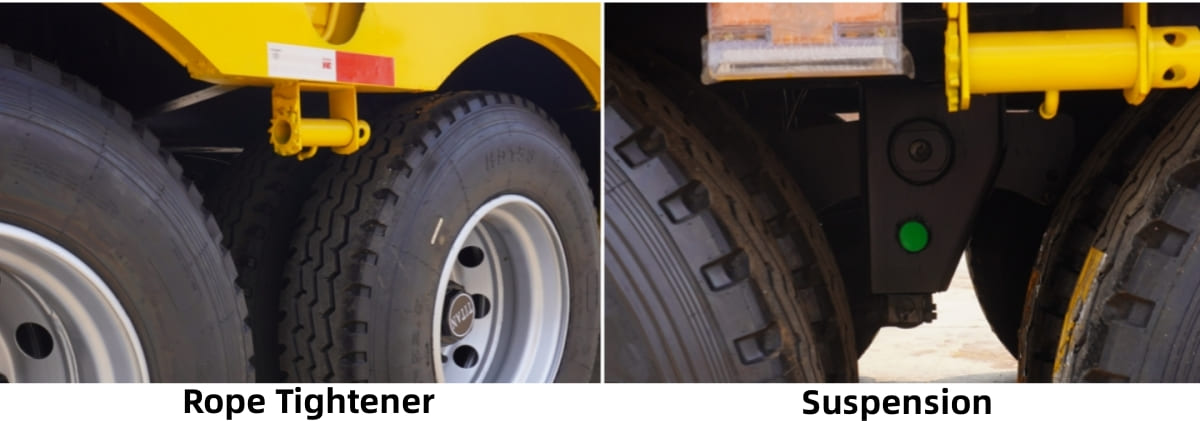

Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

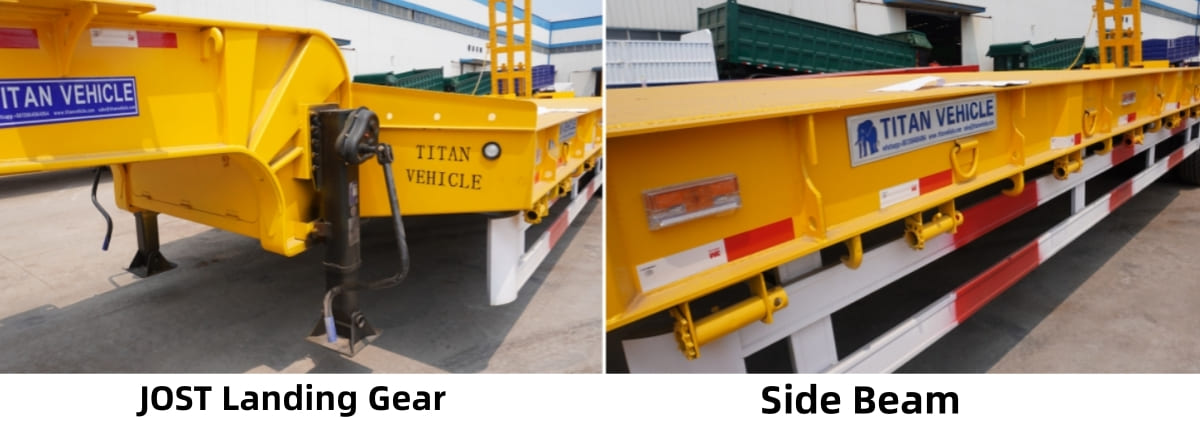

Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)

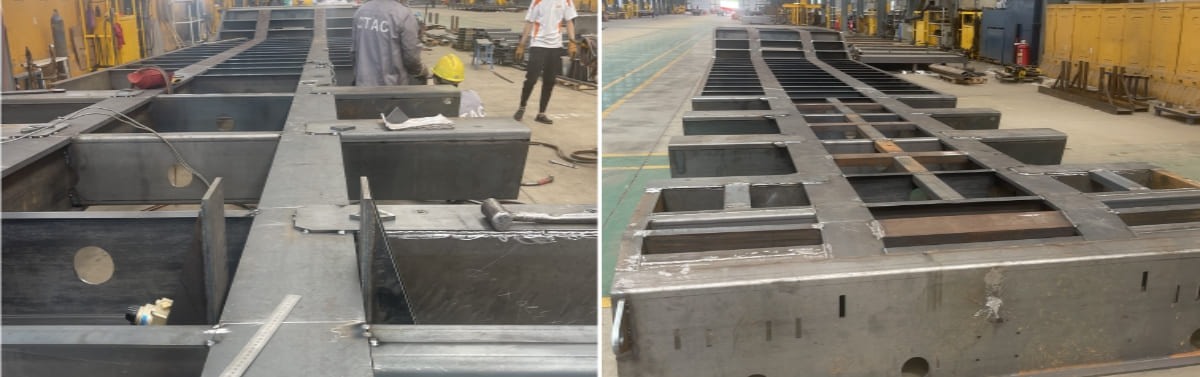

According to the drawings of each part produced by the design department, each part is cut out with a CNC cutting machine, such as beam webs, reinforcement plates, standard small accessories and so on.
Contact us to get the latest quotation!
